  首页 >> 钢格板

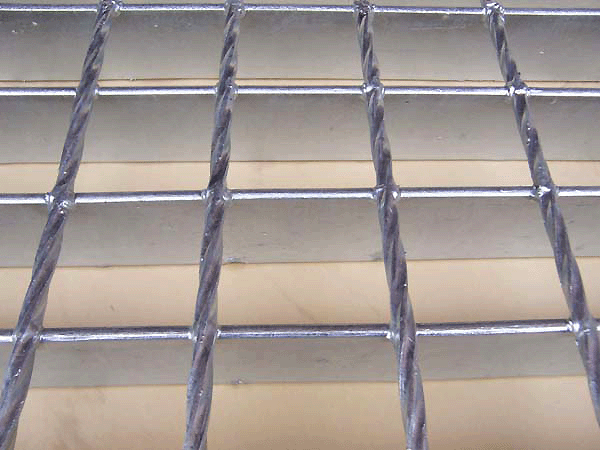

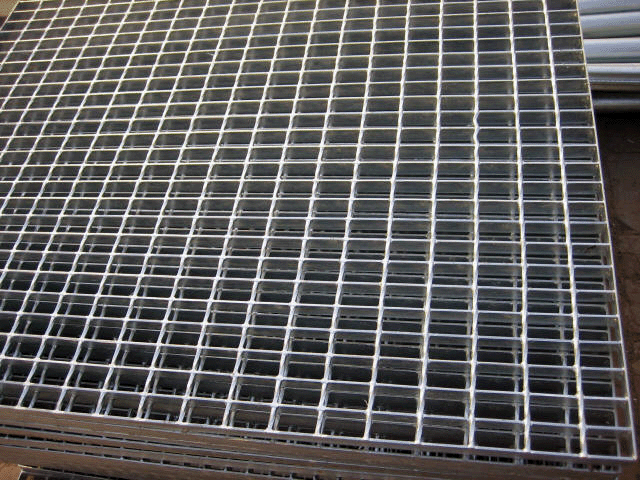

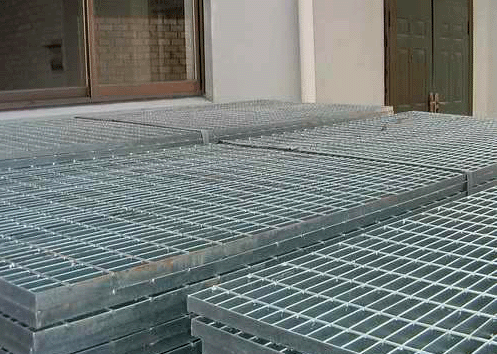

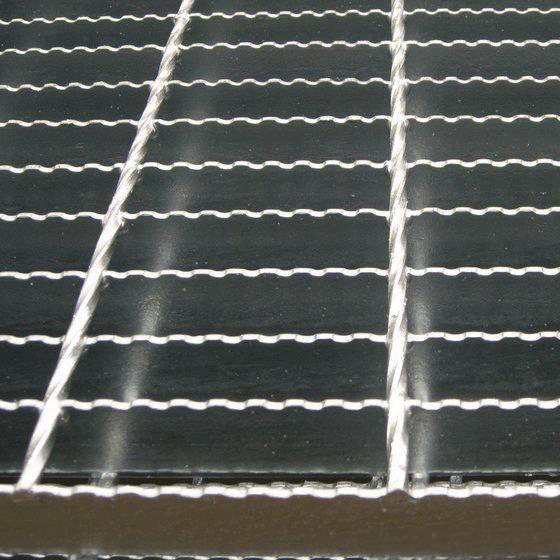

钢格板
系列1（间距30mm）钢格板是最常用型，用途遍及各工业领域的产品，这种系列钢格板的受荷扁钢中心距离为30mm,符合美国标准规定，在整个钢格板系列中，对表面冲击具有最强的抵抗力。它广泛地应用于电厂、提炼厂、污水处理厂、粮仓、化工厂、公路、机场和码头等平台、走道和排水沟盖、楼梯踏步等。其中齿型钢格板可用于潮湿、滑腻的地方，尤其适用于海上采油平台。
系列2（间距40mm）钢格板是最经济最轻便型，符合英国标准规定的固定平台，走道及楼梯的规格，在跨距小的场合下，这是最理想的产品，即使在运输设备走道那样的负荷下也不例外，也可用来做仓库的货架、楼阁的面板、栈桥、防护栅栏、太阳帘等。
系列3（间距60mm）钢格板是特别为采矿工业的应用而发展的品种，它解决了矿物溅落在板面上的难题。这个系列的钢格板具有名义尺寸为50*60mm的通空，容许大多数的溅落料穿落，从而保证了板面的干净和安全，这种产品常常被指定用在破碎系统中的板面，输送线上的走道以及球磨机，加工厂及运转站等。
系列 纵条间距 横条间距 负载扁钢规格(宽×厚)
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
系列 纵条间距 横条间距 负载扁钢规格(宽×厚)
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50
