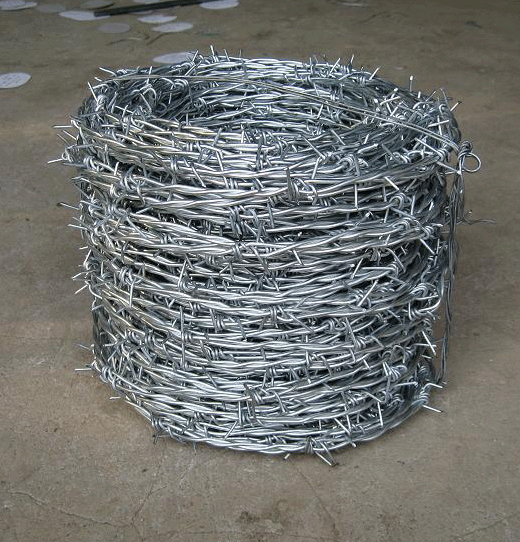

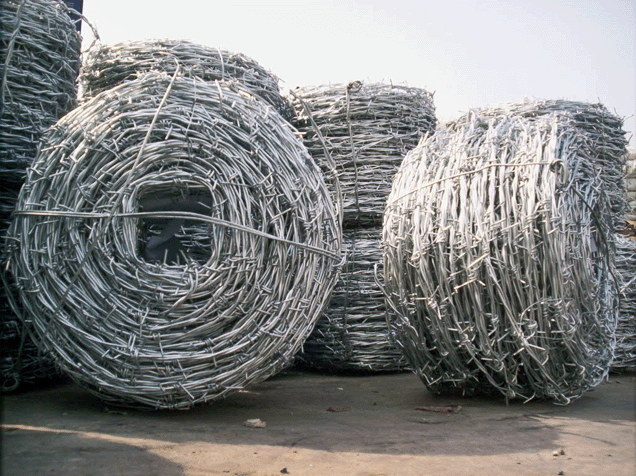

刺绳
材质: 优质低碳钢丝（镀锌、涂塑、喷塑）
编织特点: 拧编而成；牢固、美观。
用途: 用于草场边界、铁路、高速公路的隔离防护等。

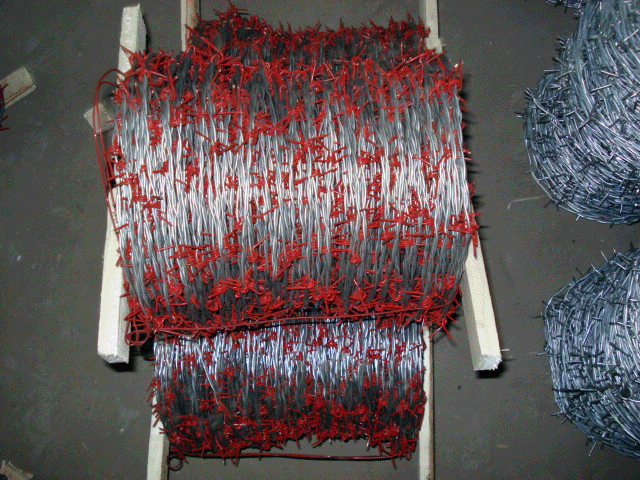

PVC涂塑刺绳
芯： 镀锌丝或黑退火丝
颜色：绿色、蓝色、黄色、桔黄色、灰色或其它
抗拉强度：30-45 kgs./sq.mm

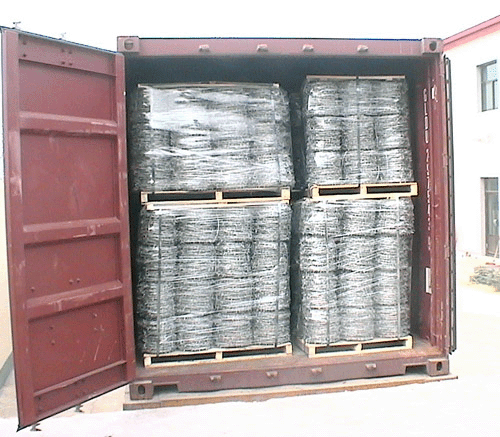

包装：25公斤或50公斤/盘，用P.V.C带缠绕
丝号 B.W.G. 每公斤长度
刺距3" 刺距4" 刺距5" 刺距6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386

    PVC刺绳

丝径 外径
1.0mm-3.5mm 1.4mm-4.0mm
BWG.11-20 BWG.8-17
SWG.11-20 SWG. 8-17
注：P.V.C.厚度：0.4mm-0.6mm
