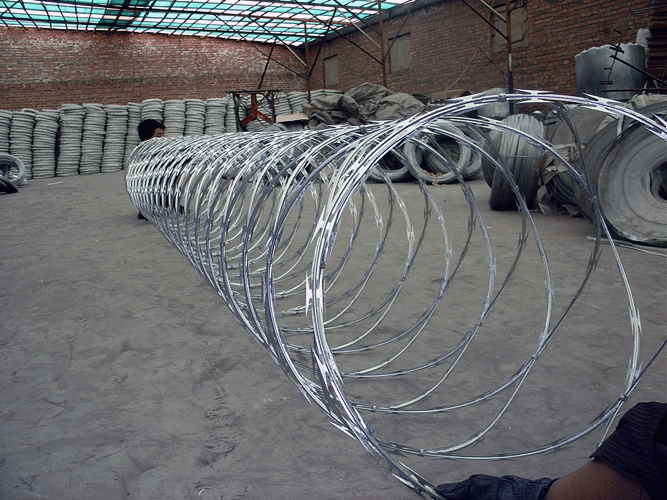

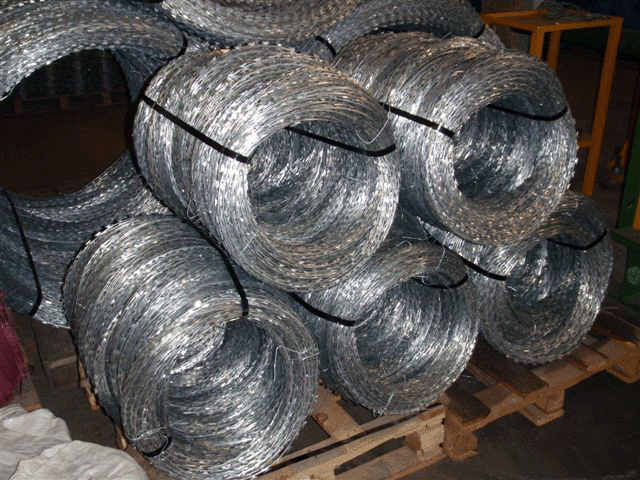

刀片刺绳
刀片刺绳是一种新型防护网。该产品具有吓阻效果好.美观.施工便利.经济实用等优异特点。主要用于园林公寓.机关单位.监狱.哨所.边防等的圈禁防护。

刀片刺绳由锐利尖角镀锌钢板或不锈钢薄板做刀片,高张力钢丝做芯线组合而成的阻绝器材。由于刺绳造形独特不易触摸,因而能达到极好的防护隔离效果。螺旋交叉形刀片刺网是一种把刀片刺网做成螺旋交叉型的防护网。

材质: 优质低碳钢丝（镀锌、涂塑、喷塑）不锈钢

刀片刺绳

刀片类型
刀片规格	刀片形式	刀片厚	心线直径	刀长	刀宽	刀间
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5	28	15	45±1
BTO-30		0.5±0.05	2.5	30	18	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2

刀片刺绳规格
外径	圈数	标准覆盖长度	生产形式	备注
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Single coil
450mm	56	8-9M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
