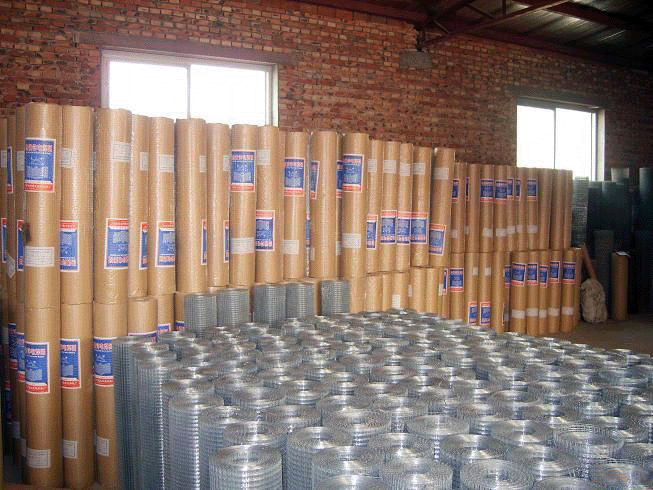

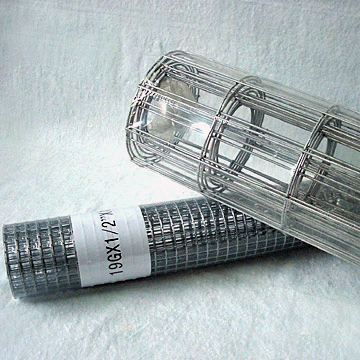

Welded Wire Mesh
According to materials, we can offer electric galvanized welded wire mesh; hot-dip galvanized welded wire mesh and welded stainless steel wire mesh.

According to the wire diameter and opening, we can offer standard welded wire mesh or heavy type welded wire mesh.

Differernt processing means we offer for your choice include: hot-dip galvanized welding wire mesh; hot-dip galvanized before welding wire mesh; electric-galvanised after welding wire mesh; electric-galvanised before welding wire mesh.
Specification List of Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Fencing Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

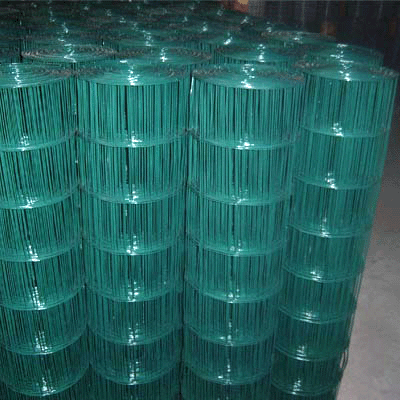

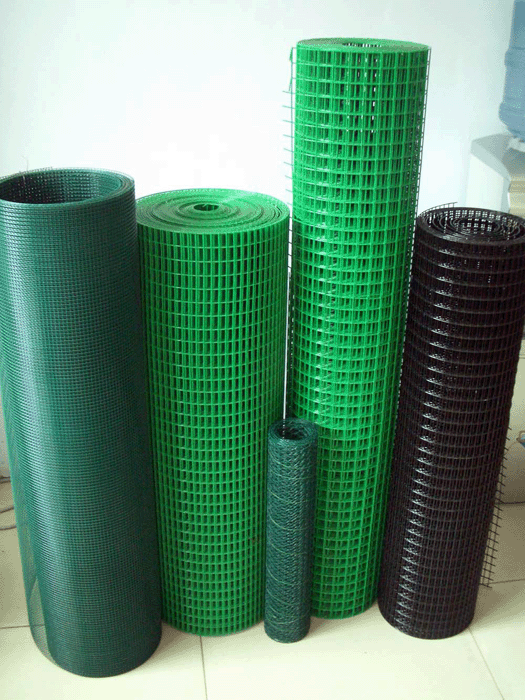

PVC Coated Welded Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
Hardware Wire Mesh
