Razor Wire

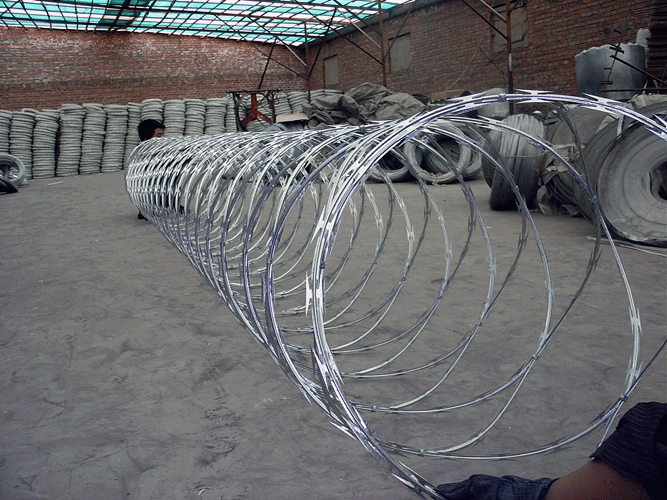

The diameter of the razor wire coils can range from 18 inches to 60 inches, while 30-inch products are among the most often specified for medium or high security applications. Concertina configuration is available, which makes the razor wire barrier much more dense and difficult to penetrate. It is almost vital for products of 30 inch diameter and greater.

Please tell us the specifications of razor wires that you need and we constantly strive to exceed the expectations of our customers.

CBT: Concertina Barbed Tape; BTO: Barbed Tape Obstacle

  • Razor Wire

  • Razor Wire

  • Razor Wire

  • Razor Wire
    • Typical Razor Types
    Reference Number Blade Style Thickness Wire Dia Barb Length Barb Width Barb spacing
    BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
    BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
    BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
    BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
    BTO-28 0.5±0.05 2.5 28 15 45±1
    BTO-30 0.5±0.05 2.5 30 18 45±1
    CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
    CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

    Razor Wire Specification
    Outside Diametar No. of Loops Standard Length per Coil Type Notes
    450mm 33 7-8M CBT-60.65 Single coil
    500mm 56 12-13M CBT-60.65 Single coil
    700mm 56 13-14M CBT-60.65 Single coil
    960mm 56 14-15M CBT-60.65 Single coil
    450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
    500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
    600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
    600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
    700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
    800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
    900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
    960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
    980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
