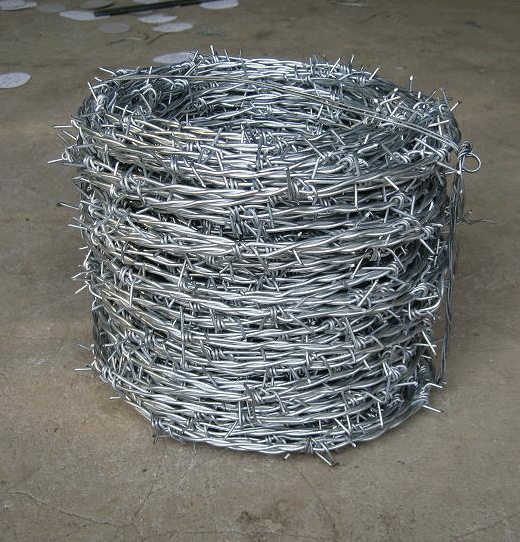

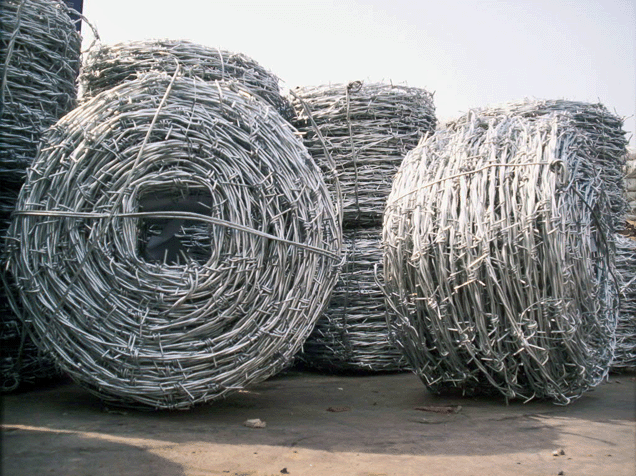

Barbed Wire
Raw Material:quality low carbon steel wire(galvanized,PVC coated,plastic sprayed)
Weaving character: General
Use:Barbed Wire mainly serves in protecting of grass boundary,railway,highway etc.

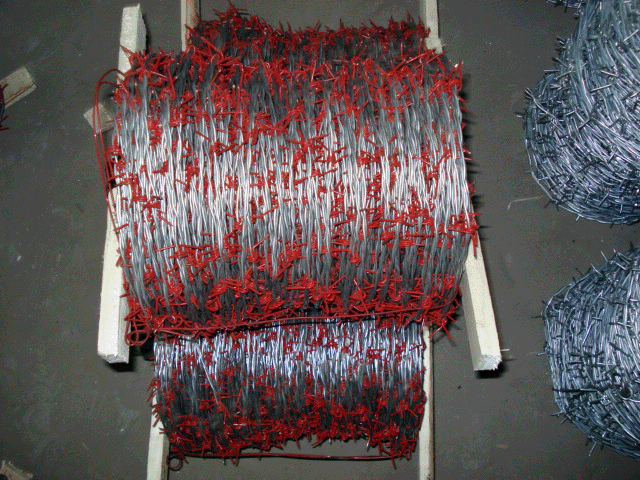

PVC Barbed Wire
Core:galvanized wire or black annealed wire.
Color:green,blue,yellow,orange,grey and others.
T.S.:30-45kgs/sqmm
Packing:25kg/coil or 50kg/coil,PVC strip wraped. .mm
Wire Gau B.W.G. Length Per KG
Barb Distance 3" Barb Distance 4" Barb Distance 5" Barb Distance 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386

PVC Barbed Wire

Inner Wire Dia Outer Dia
1.0mm-3.5mm 1.4mm-4.0mm
BWG.11-20 BWG.8-17
SWG.11-20 SWG. 8-17
Note：P.V.C. Thickness：0.4mm-0.6mm
